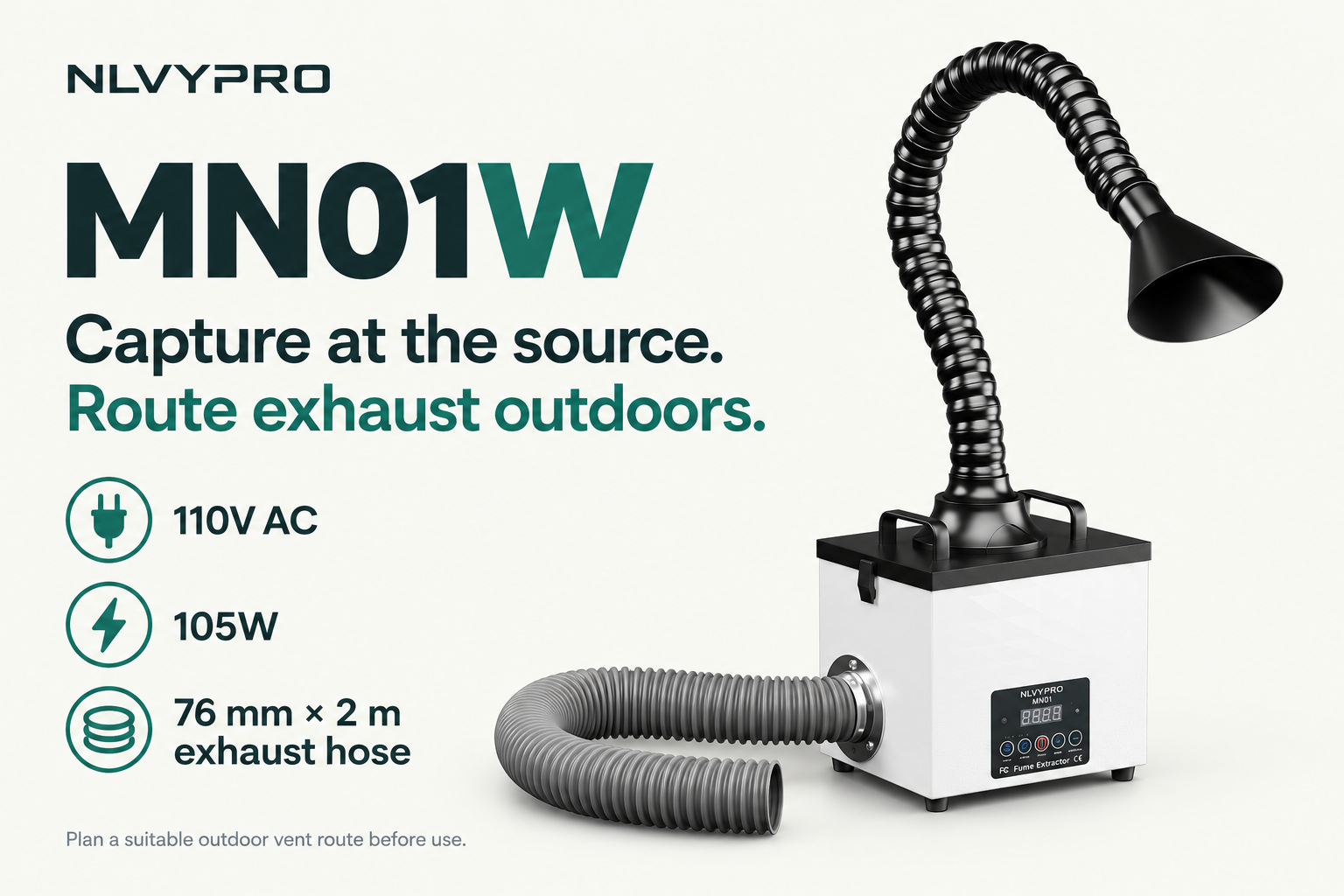

MN01W / 110V
For 5W laser engraving and cutting machines only.
Laser Cutting Fume ExtractorsLaser Engraving Fume Extractors
Capture at the source.
Route exhaust outdoors.
MN01W combines an adjustable extraction hose, three replaceable filter stages and a side connection for an outdoor exhaust hose. Plan the capture position and a suitable exhaust route for your work area.
Check the selected package, current price and availability on Amazon.
View Manual (PDF) ↗Opens the product manual in a new tab.
EXHAUST ROUTING
An inlet for capture.
An outlet for routing.
Position the extraction hood
Bring the adjustable black hose and hood toward the fume source. Avoid sharp bends and keep the airflow path clear.

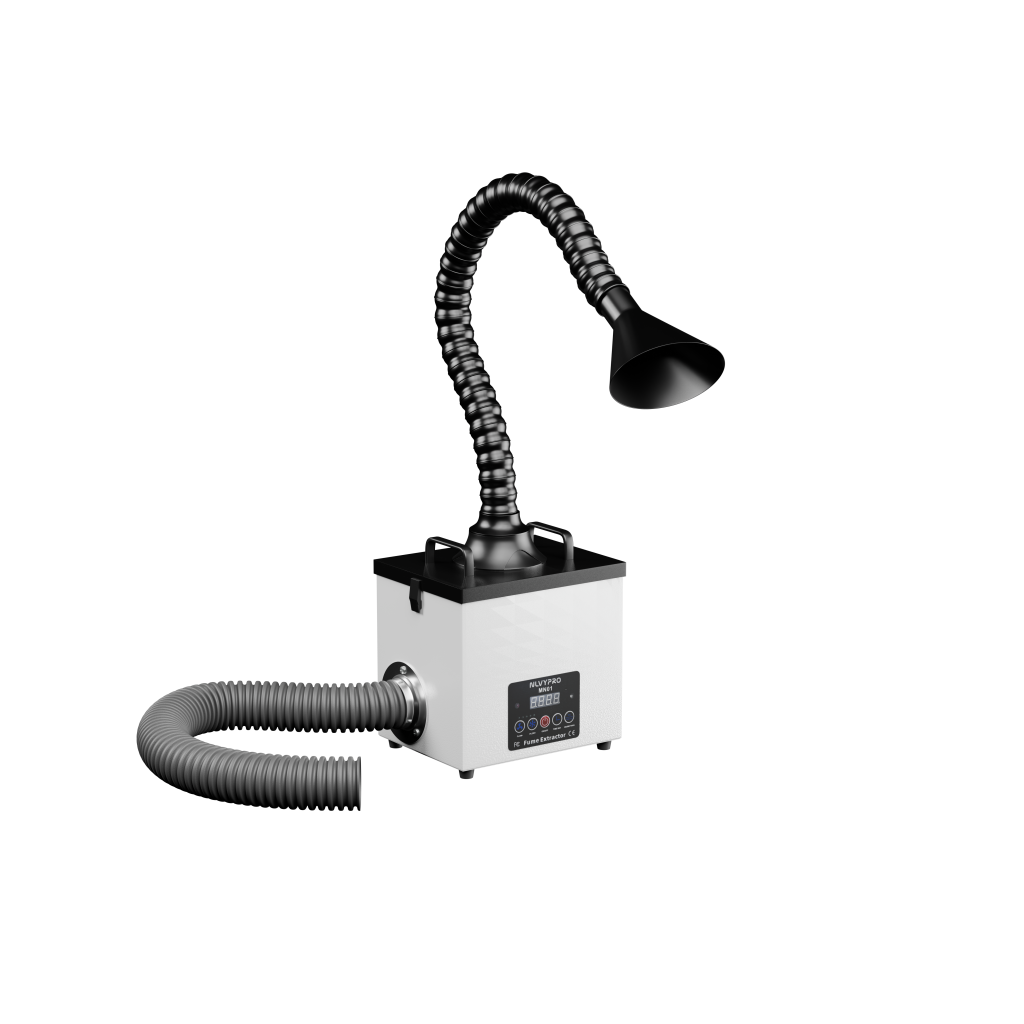

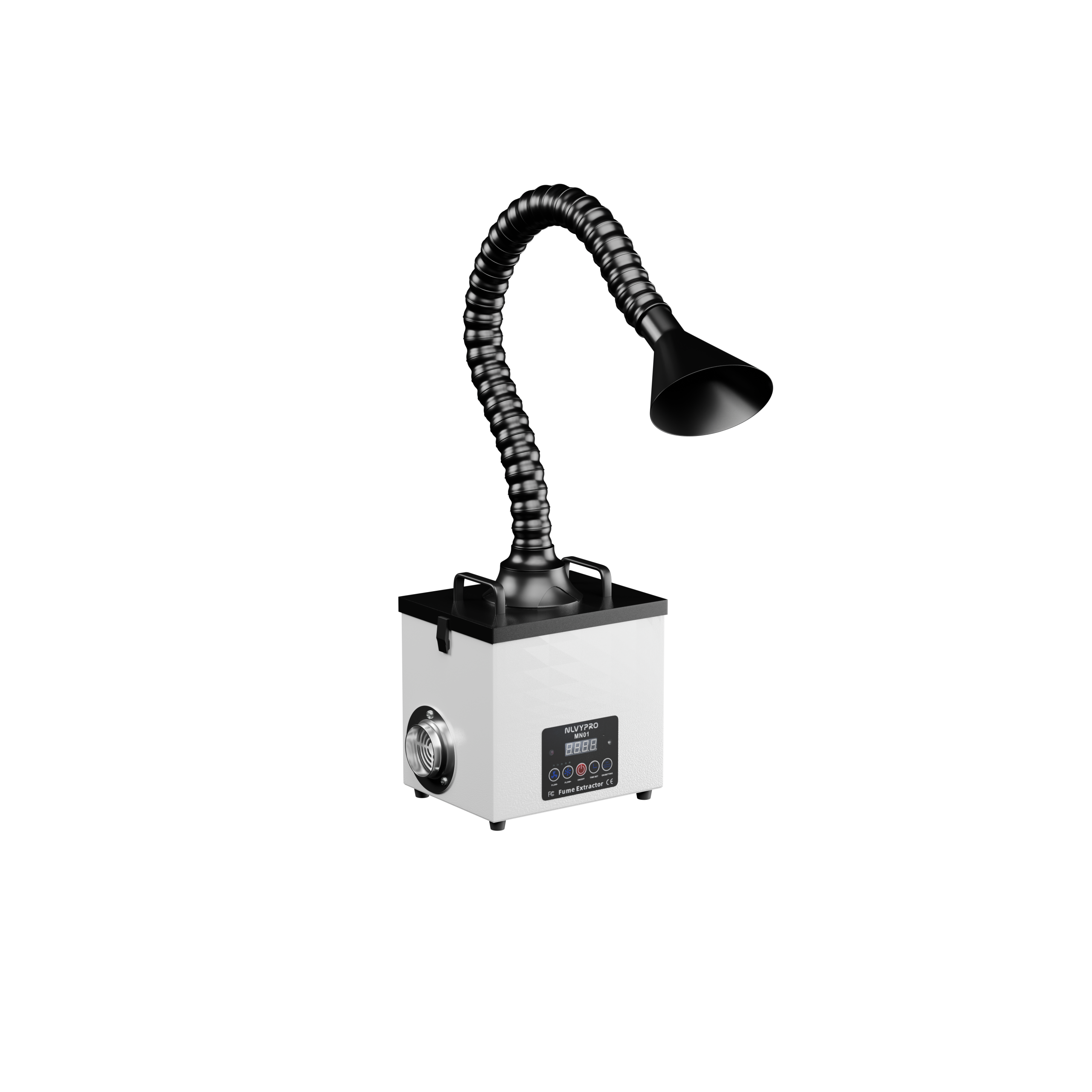

Connect the side exhaust hose
MN01W supports the outdoor exhaust arrangement described in the shared manual. The supplied specification lists a 76 mm diameter, 2 m exhaust hose.
Plan the outdoor termination
Choose a suitable discharge location away from occupied areas and air intakes. Assess the materials, process and ventilation requirements before operation.
SEE THE SETUP
Watch the MN01W demonstration.
Approximately 32 seconds. Includes product footage and filtration illustrations. Demonstration footage does not establish performance for every material or work process.

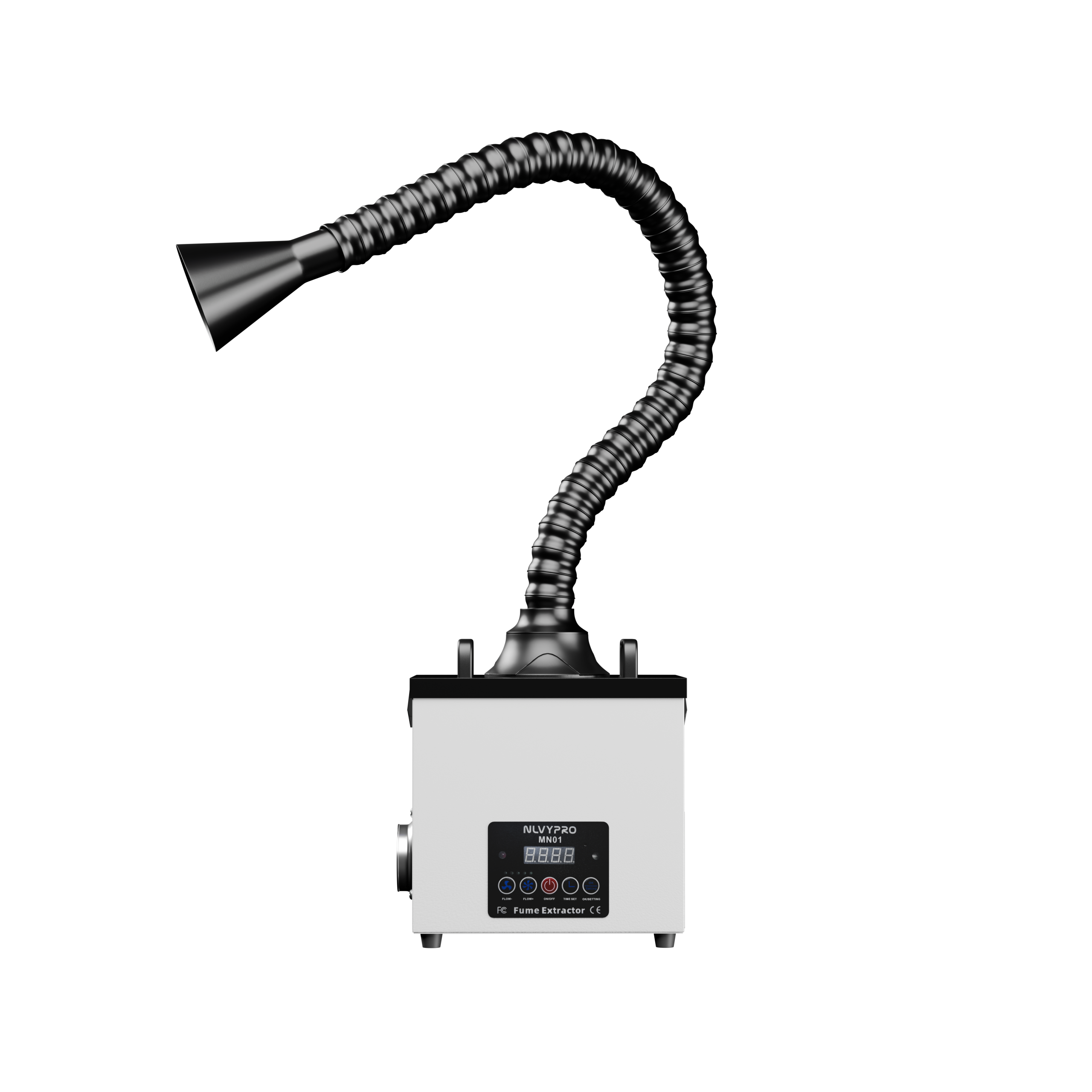

PRODUCT VIEWS
The exhaust arrangement, in view.
For 5W laser engraving and cutting machines only.
TECHNICAL DETAILS
MN01W specifications
| Model | MN01W |
|---|---|
| Machine compatibility | 5W laser engraving and cutting machines only |
| Input voltage | 110V AC |
| Rated power | 105W |
| Filtration | 3 stages: pre-filter pad, HEPA filter and activated carbon filter |
| Exhaust hose | 76 mm diameter × 2 m length |
| Main unit dimensions (L × W × H) | 10.8 × 8.5 × 12.2 in |
| Controls | Front panel and remote control |
Dimensions refer to the main unit. Verify the selected package and rating label before installation.
Common questions
How does MN01W differ from MN01?
The shared manual identifies MN01W as supporting an optional outdoor exhaust arrangement. Use the MN01W side connection and matching exhaust hose as directed in the manual.
What are the three filtration stages?
A pre-filter pad, HEPA filter and activated carbon filter. Inspect the filters regularly and replace them according to condition and the manual.
Can I discharge exhaust anywhere?
No. Plan an appropriate outdoor discharge location for the materials and process. Avoid directing exhaust toward people or fresh-air intakes.
Manual & purchase
MN01 and MN01W share a user manual. Refer to the MN01W outdoor exhaust section for the model-specific arrangement.
