NLVYPRO / PRODUCT

MN02 Fume Extractor

MN02 / 110V

200W extraction.
Four layers of filtration.

MN02 brings an adjustable capture hose, replaceable filters and a wheeled cabinet to your workspace. Position the hood near your work or use the flexible hose arrangement shown in the product photos.

110VPower supply

200WRated power

4 layersFilter arrangement

Buy MN02 on Amazon ↗View Manual (PDF) ↗

Opens the product manual in a new tab.

Check current price, availability and package contents on Amazon.

WORKSPACE SETUP

Capture close to the source.

Adjust the capture position

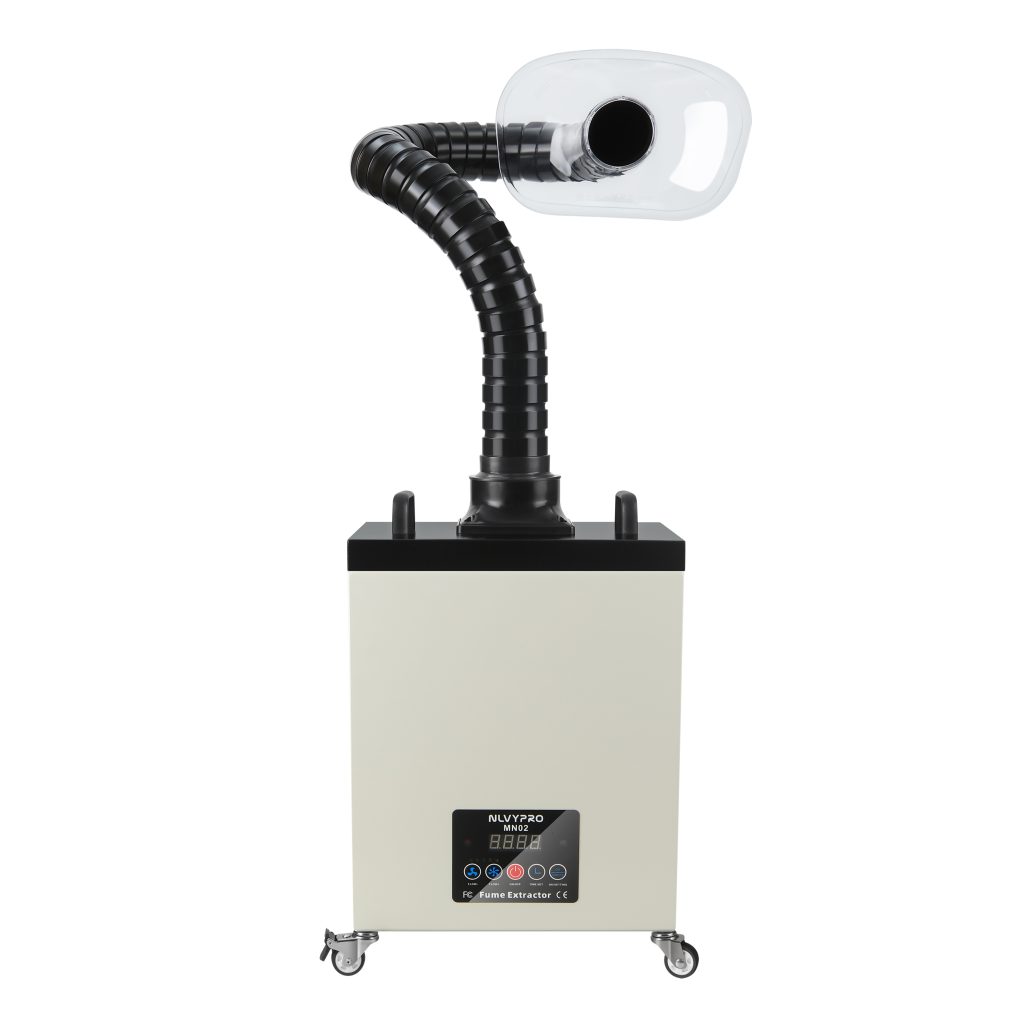

The articulated hose and transparent hood let you position the inlet beside the work area. Keep the intake close to the source and the hose path clear.

Choose your hose arrangement

The specified kit includes a 75 mm diameter, 1 m articulated hose, a 75 mm diameter, 2 m flexible hose and two hose clamps.

Move between work areas

The cabinet has caster wheels and top handles. Switch off and disconnect the unit before moving it or opening the filter compartment.

SEE MN02 IN USE

Watch the product demonstration.

Product demonstration footage. Capture results depend on the material, process, hose arrangement and filter condition.

A CLOSER LOOK

The unit, hoses and accessories.

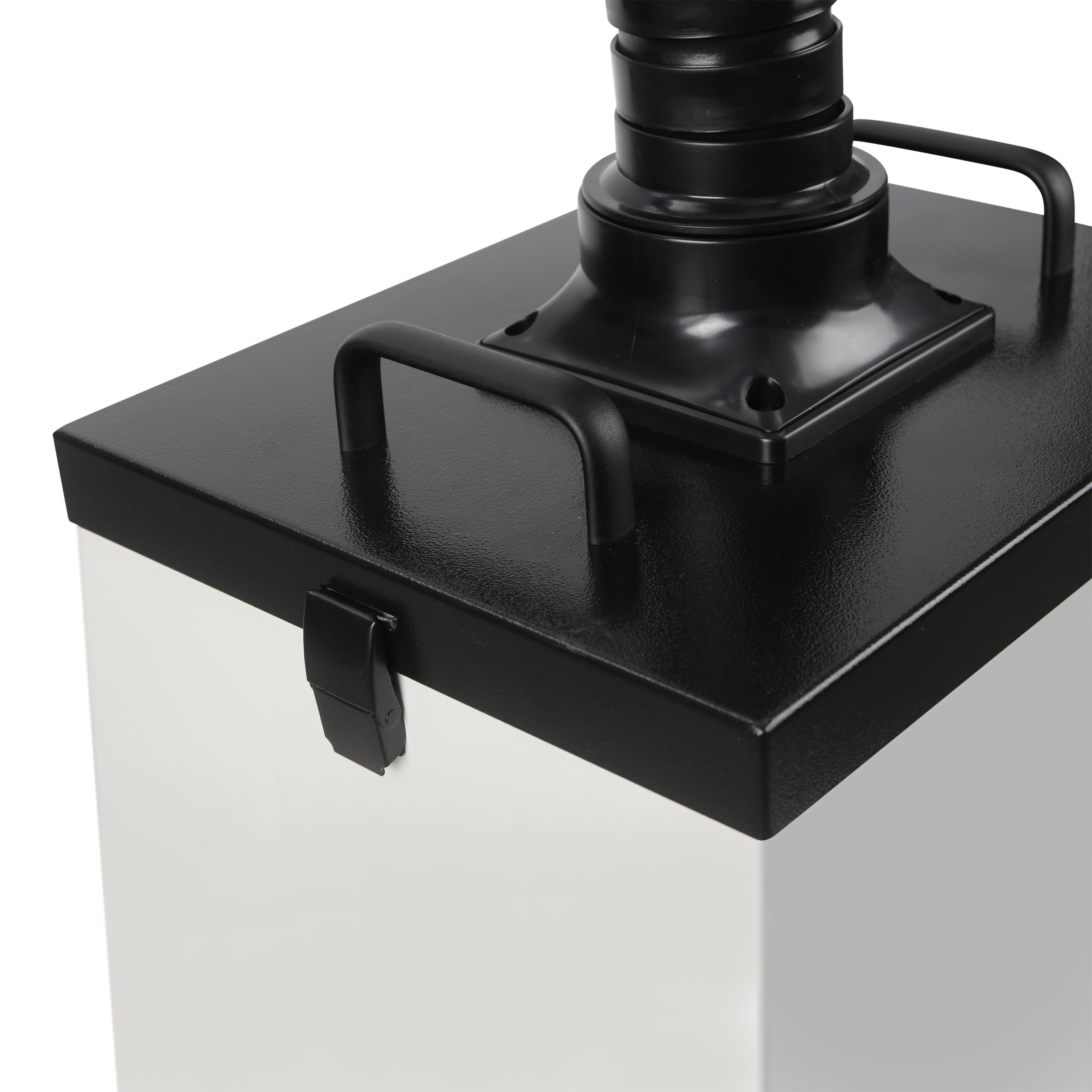

MN02 top handles, hose connection and cover latch — Top handles, hose connection and cover latch

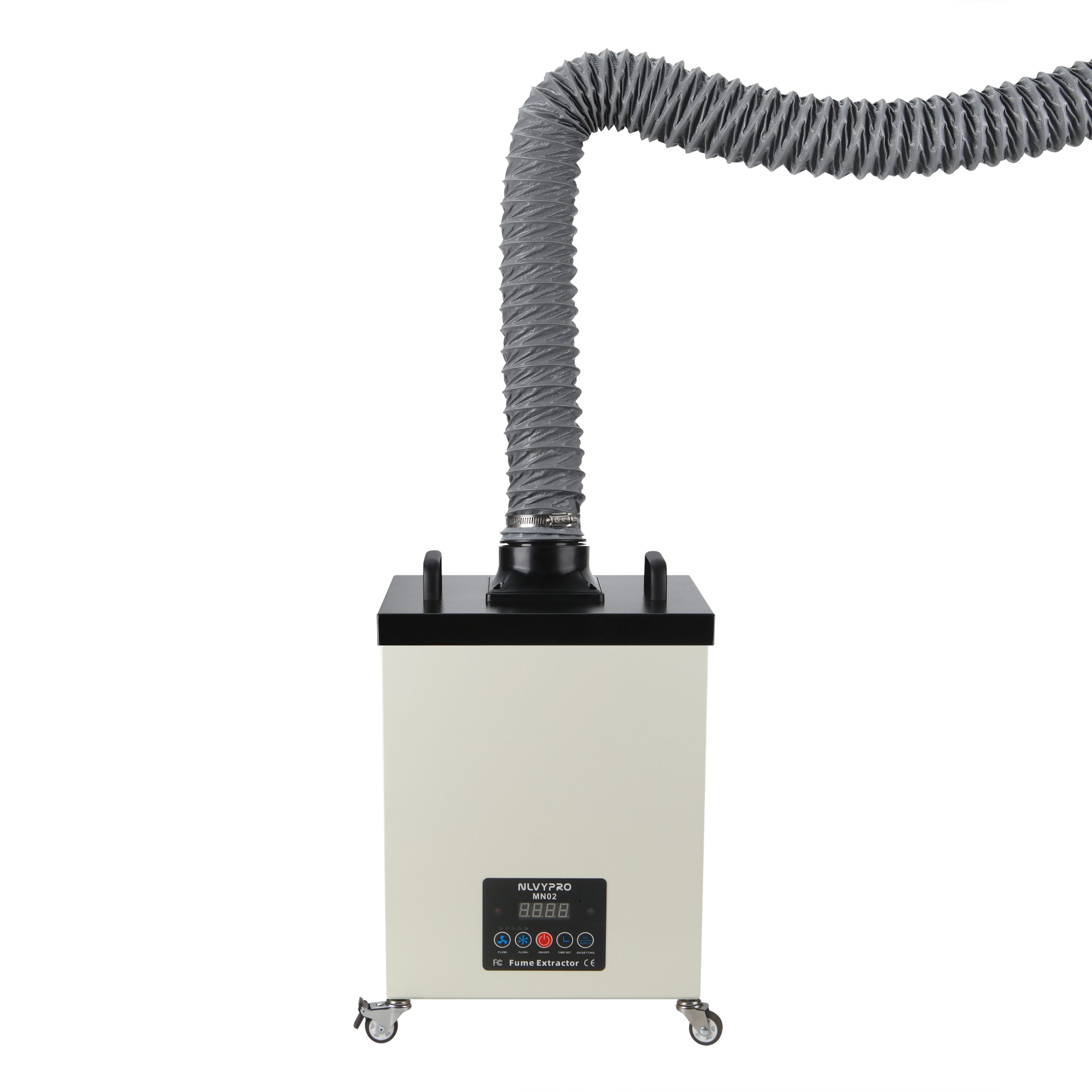

MN02 with flexible capture hose — MN02 with the flexible hose arrangement

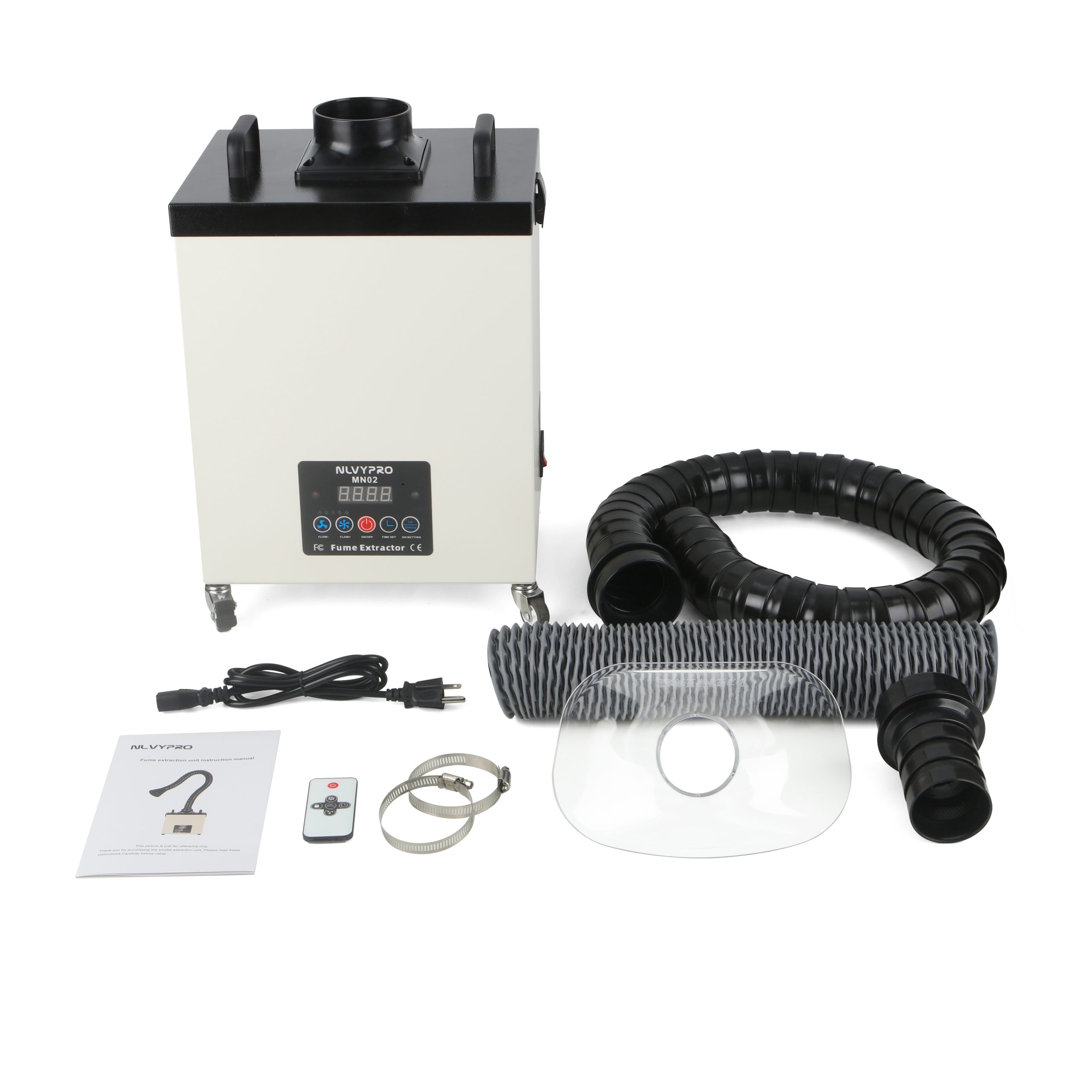

MN02 unit and accessory arrangement — MN02 unit, hoses, transparent hood and accessories

Check the selected Amazon package for supplied accessories.

FILTER ARRANGEMENT

Four layers, accessible from the top.

Black washable foam, a pre-filter pad, a HEPA filter and an odor filter form the specified four-layer arrangement. Inspect the filters regularly and follow the manual for cleaning and replacement.

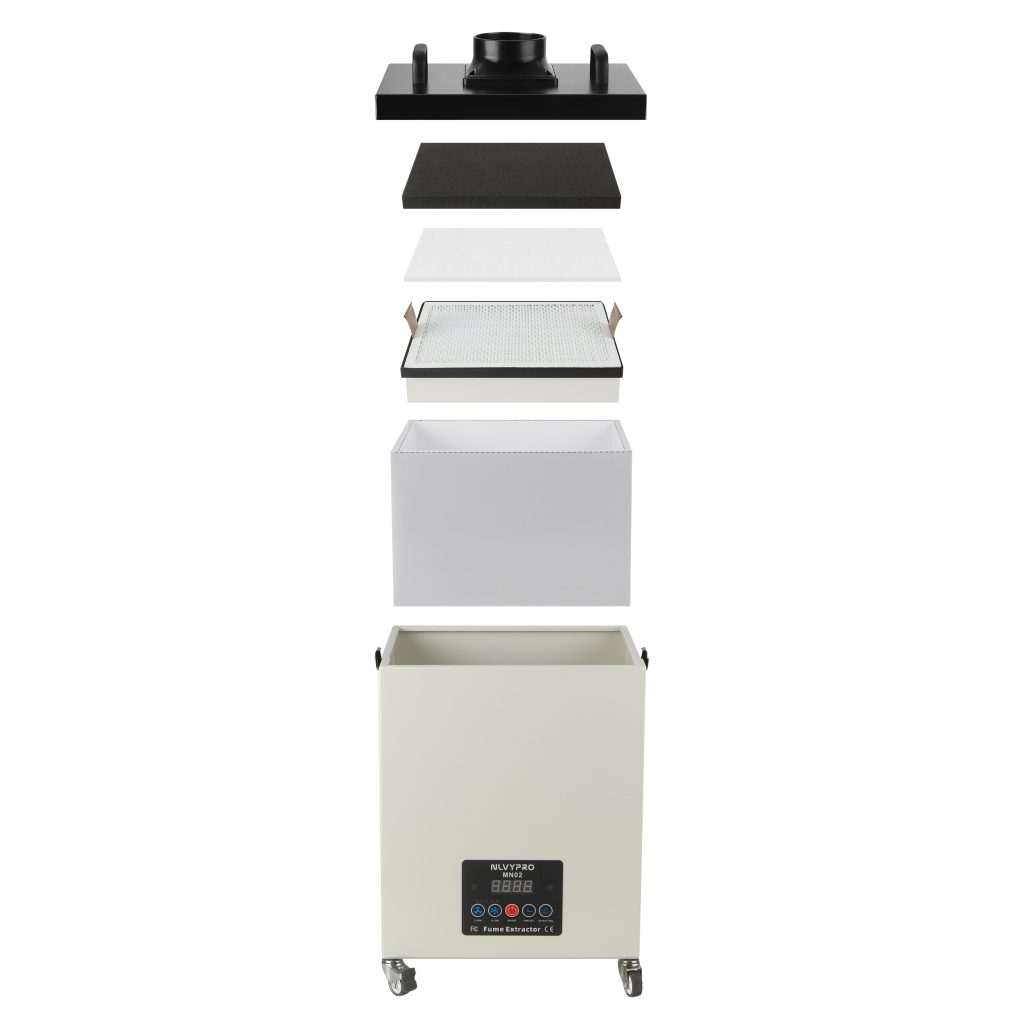

Exploded view of MN02 four-layer filter arrangement — Exploded view of the MN02 cabinet and filter components.

Only the black foam layer is identified as washable. Do not wash the other filters unless the manual specifically permits it.

TECHNICAL DETAILS

MN02 specifications

Model	MN02
Power supply	110V AC
Rated power	200W
Filter layers	4: black washable foam, pre-filter pad, HEPA filter and odor filter
Noise	Less than 62 dB (manufacturer specification)
Weight	11 kg / approximately 24.3 lb
Machine dimensions	12.2 × 9.9 × 18 in
Articulated hose	75 mm diameter × 1 m
Flexible hose	75 mm diameter × 2 m
Hose clamps	2

Noise varies with operating conditions and measurement distance. Review the manual and selected package before ordering.

Common questions

Which applications is MN02 listed for?

MN02 is listed in our soldering, laser engraving, laser cutting, laser marking, 3D printing and nail dust and fume extraction categories. Match the capture arrangement, material and process requirements to the product before use.

What filters does MN02 use?

The four-layer arrangement consists of black washable foam, a pre-filter pad, a HEPA filter and an odor filter. Keep the filters correctly seated and replace them according to condition and the manual.

Can I wash all four filters?

No. The supplied specification identifies the black foam as washable. Follow the manual for the other filters and let any washed component dry completely before reinstalling.
